- Cablaggio
- Custom Specialized wiring harness
- Caricatore
- Custom charger, 48V System w/ SL system charger plug
- Batteria
- Specialized SL1-320, fully integrated, 320Wh
- Motore
- Specialized 1.2 SL Custom Rx Trail Tuned Motor

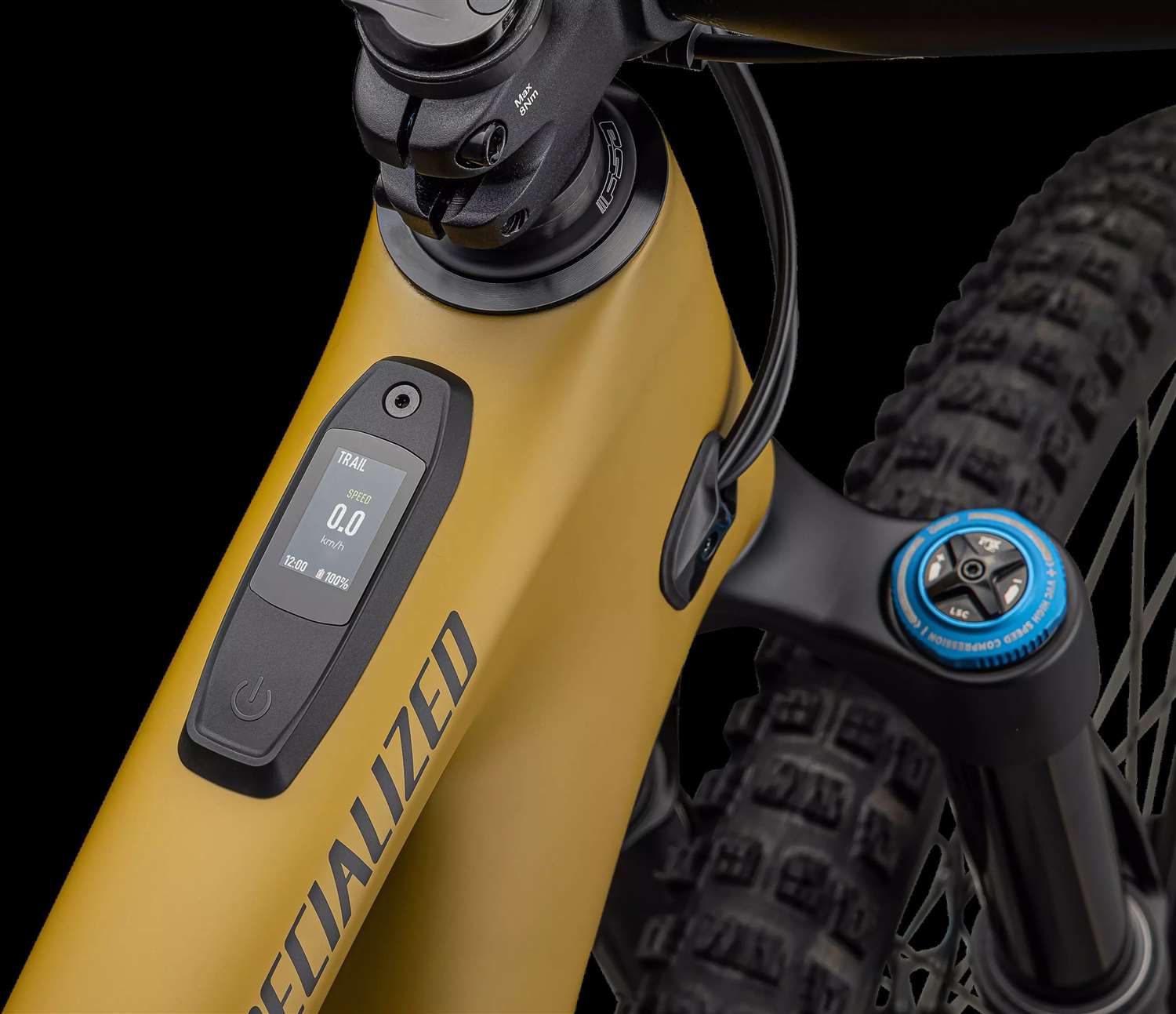

- User Interface/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
- Forcella
- Fox 36 Performance Elite, 29", 44mm offset, Grip 2 damper, S1: 150mm, S2-S6:160mm
- Collarino Sella
- Alloy, 38.6mm
- Telaio
- All new Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
- Ammortizzatore
- S2-S6: Fox Float X Performance elite series, 210x55mm, S1: Fox Float DPS Performance elite series, , 210x50mm
- Freno posteriore
- SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
- Ingranaggi
- New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
- Comandi cambio
- SRAM AXS POD Controller
- Catena
- SRAM CN GX T-TYPE XXX LINK
- Pacco Pignoni
- SRAM CS XS 1275 T-TYPE 10-52
- Guarnitura
- SRAM Alloy Crankset, Dub interface
- Cambio posteriore
- SRAM GX Eagle Transmission Derailleur
- Pneumatico anteriore
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Pneumatico posteriore
- Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
- Camere d'aria
- Standard, Presta Valve
- Ruota posteriore
- Traverse 27.5
- Ruota anteriore
- Traverse 29
- Attacco Manubrio
- Alloy Trail Stem, 35mm bar bore
- Sella
- Bridge Comp, Hollow Cr-mo rails, 155/143mm
- Reggisella
- OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
- Manubrio
- Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp
- Manopole
- Deity Grips
- Reggisella
- SEAT POST, ONE UP, DROPPER, 2-BOLT,34.9, 120/150/180/210 TRAVEL, OFFSET 0MM,345/405/465/525MM, W/UFT REMOTE
- Pedali
- PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
- Accessori SWAT
- SWAT CC steerer tube integrated tool with chain tool and link
- Peso
- 18.25kg (40 lb, 3.7 oz)
- Misura pesata
- S4
Geometrie
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Lunghezza pedivella | 165 | 165 | 170 | 170 | 170 | 175 |
Larghezza Manubrio | 780 | 780 | 780 | 780 | 780 | 780 |
Lunghezza Attacco man. | 40 | 40 | 40 | 40 | 50 | 50 |
Larghezza Sella | 155 | 155 | 143 | 143 | 143 | 143 |
Lunghezza Reggisella | 120 | 150 | 150 | 180 | 210 | 210 |
Stack | 609 | 617 | 626 | 635 | 645 | 654 |
Reach | 405 | 425 | 445 | 470 | 495 | 525 |
Head-Tube Length | 95 | 100 | 110 | 120 | 130 | 140 |
Head-Tube Angle | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 | 64.6 |
B-B Height | 343 | 348 | 348 | 348 | 348 | 348 |
B-B Drop | -34 | -29 | -29 | -29 | -29 | -29 |
Trail | 132 | 132 | 132 | 132 | 132 | 132 |
Fork Length, Full | 560 | 570 | 570 | 570 | 570 | 570 |
Fork Rake/Offset | 42 | 42 | 42 | 42 | 42 | 42 |
Front-Center | 726 | 752 | 776 | 806 | 835 | 869 |
Chain-Stay Length | 433 | 432 | 432 | 432 | 432 | 432 |
Wheelbase | 1158 | 1184 | 1208 | 1238 | 1267 | 1301 |
Top Tube Length, Horizontal | 560 | 582 | 604 | 631 | 659 | 691 |
Bike Stand-Over Height | 727 | 763 | 766 | 767 | 773 | 778 |
Seat-Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
Seat-Tube Angle | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
