Marca: SPECIALIZED EU
Cod. Articolo: 95224-02

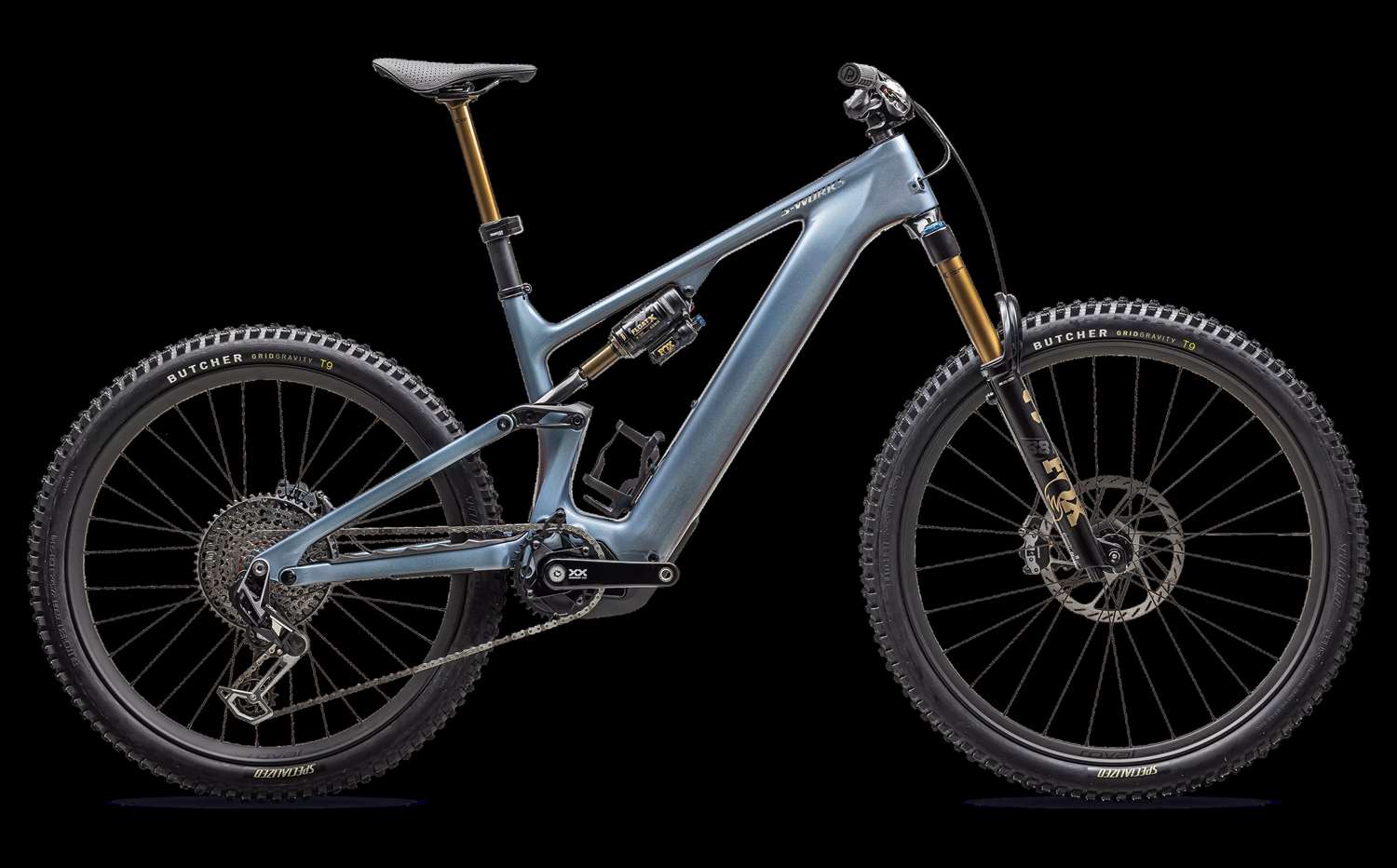

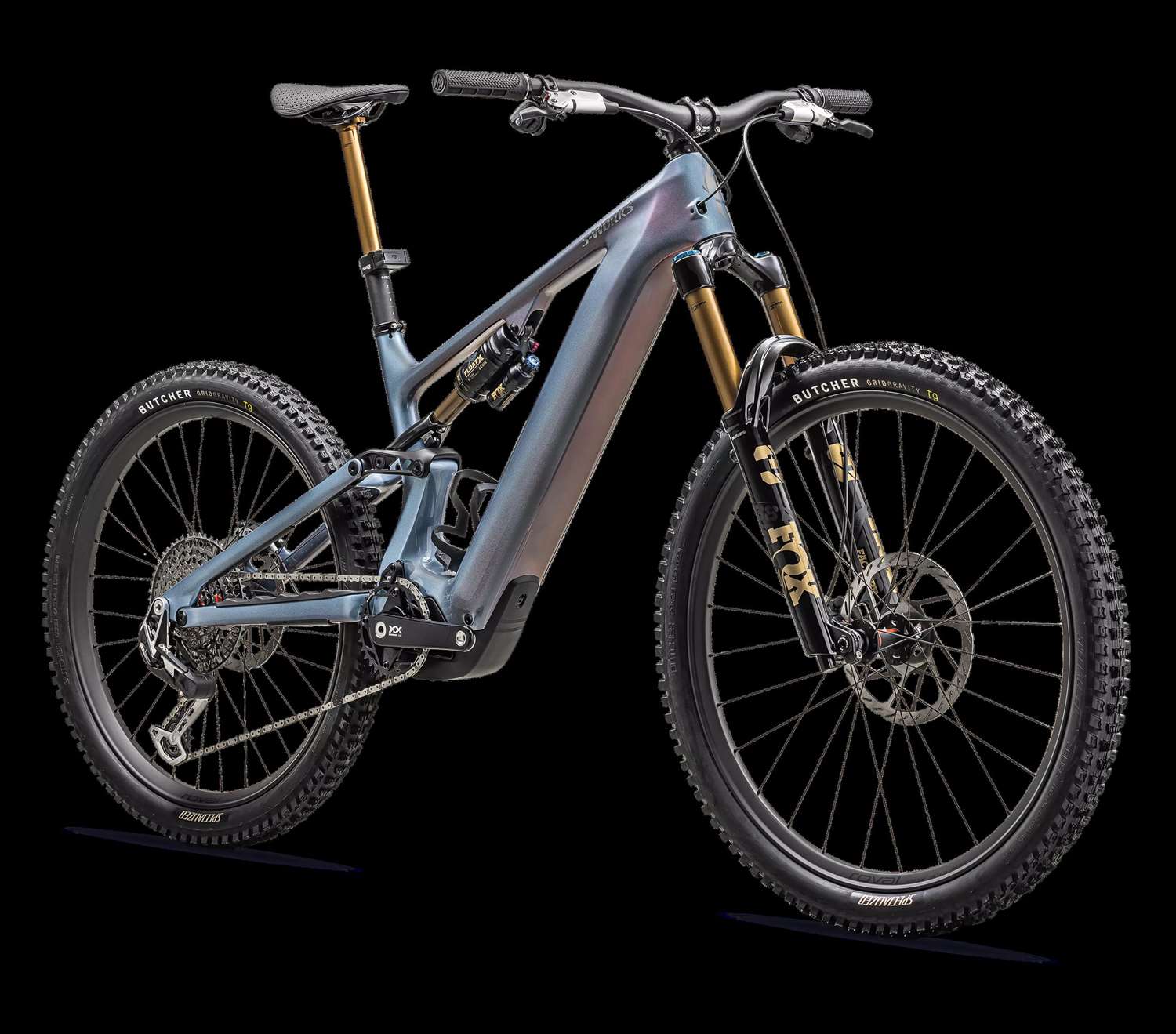

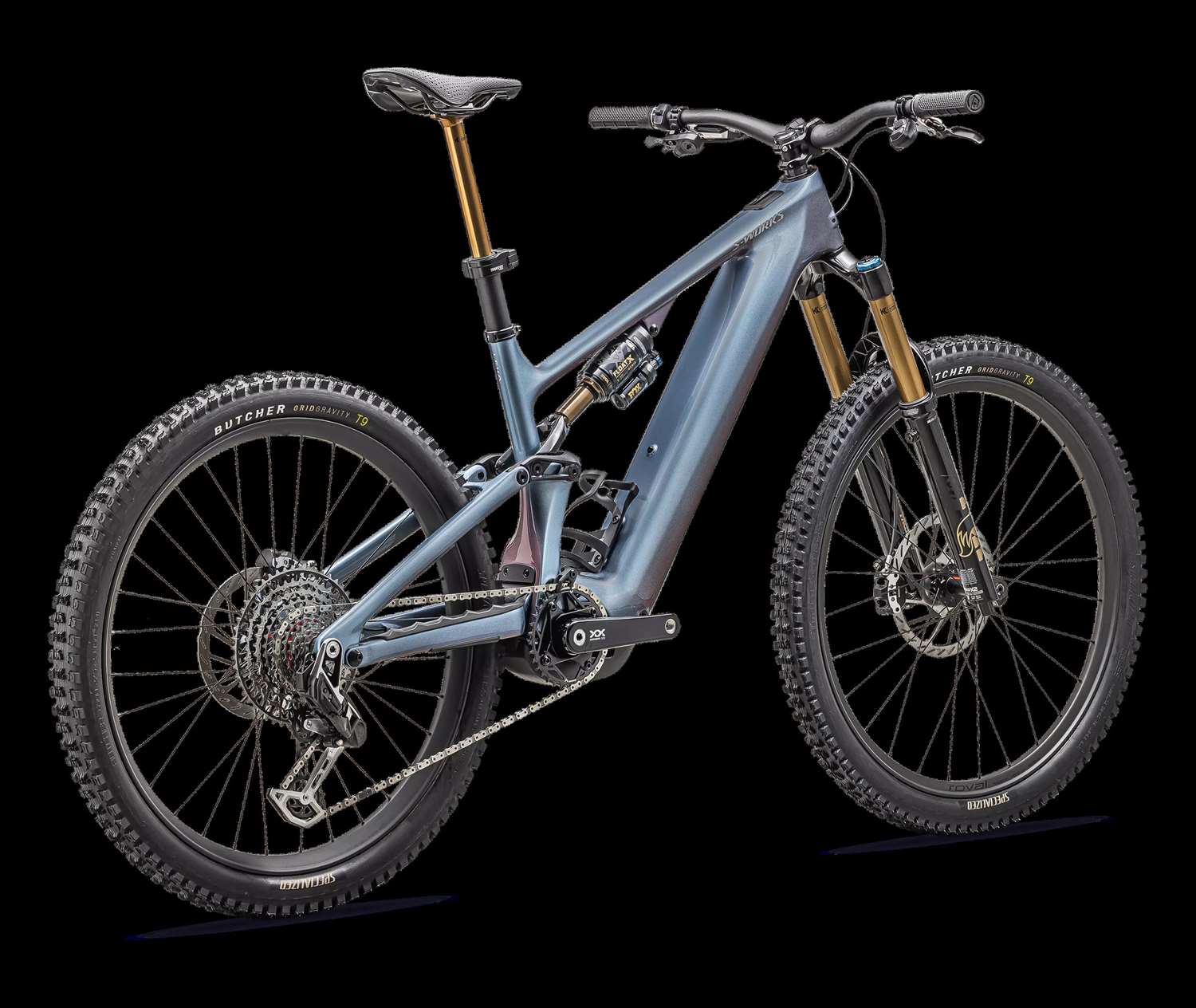

S-WORKS LEVO 4
E-Mtb con assistenza SuperNatural e massima autonomia
111 Nm di coppia, 720 watt di potenza, batteria da 840 wattora
Lo Specialized Science Club presenta la S-Works Levo 4, una mountain bike elettrica così avanzata che ti trasforma in un cyborg che pedala.
Insieme diventate una forza soprannaturale capace di conquistare qualsiasi terreno off-road.
L'assistenza alla pedalata, la trazione, il controllo e l'autonomia della Levo 4 sono i tuoi nuovi super poteri. Levo 4, Where Super Meets Natural.
Caratteristiche principali
UtilizzoFull Power E-MTB, trail
E-System
Motore S-Works 3.1 da 720 W e 111 Nm, batteria da 840 Wh, fino a 4,75 ore di autonomia
Telaio
Fibra di carbonio FACT 11m e link in carbonio, geometria regolabile e SWAT
Sospensioni
Anteriore: FOX 38 FACTORY GRIPX2 da 160 mm<br>Posteriore: GENIE - FOX FLOAT X Factory da 150 mm
Trasmissione
SRAM XX Eagle T-Type AXS
RuoteRoval Traverse HD in carbonio / DT 240 DEG
Elettronica
Motore

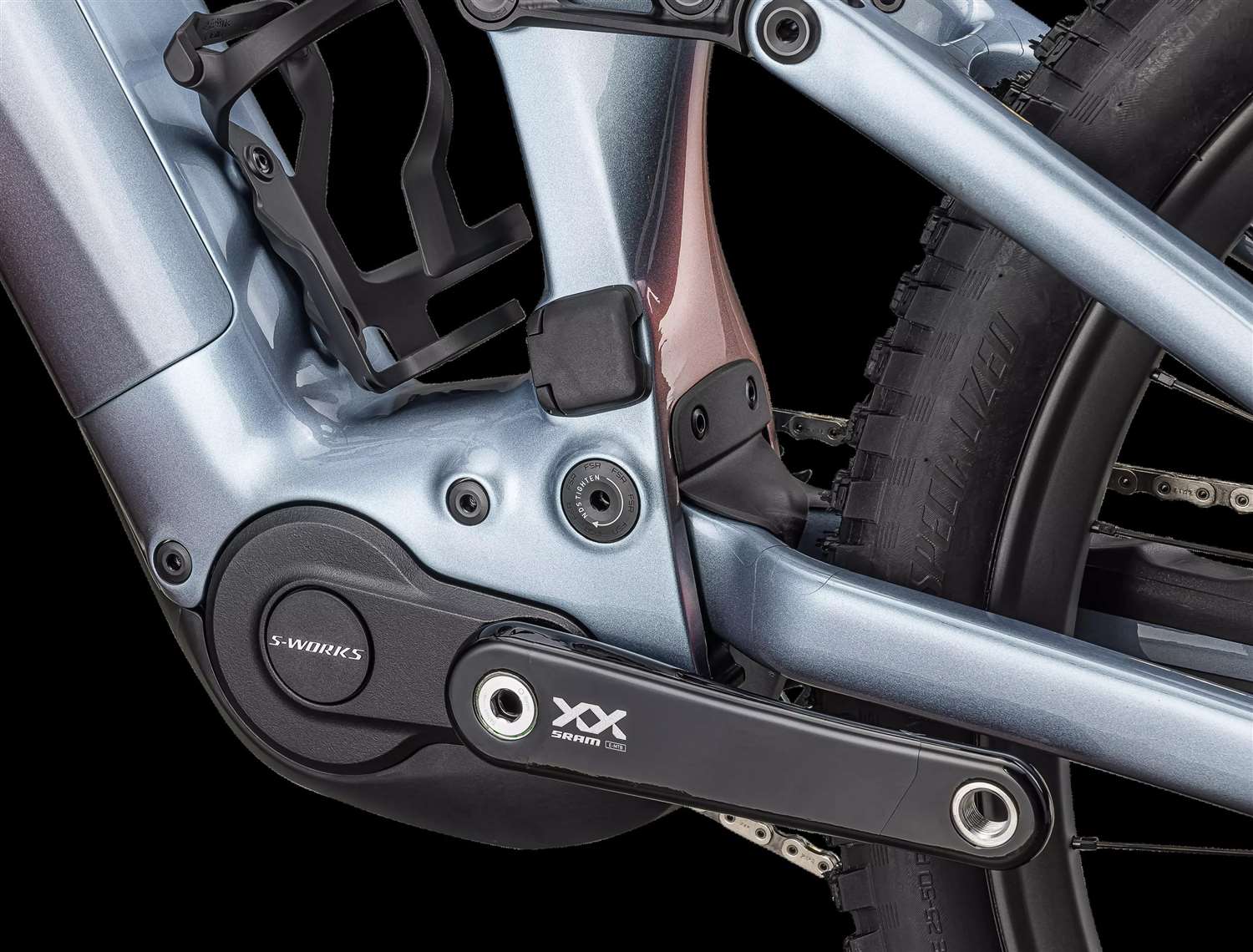

All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power
UI/Remoto

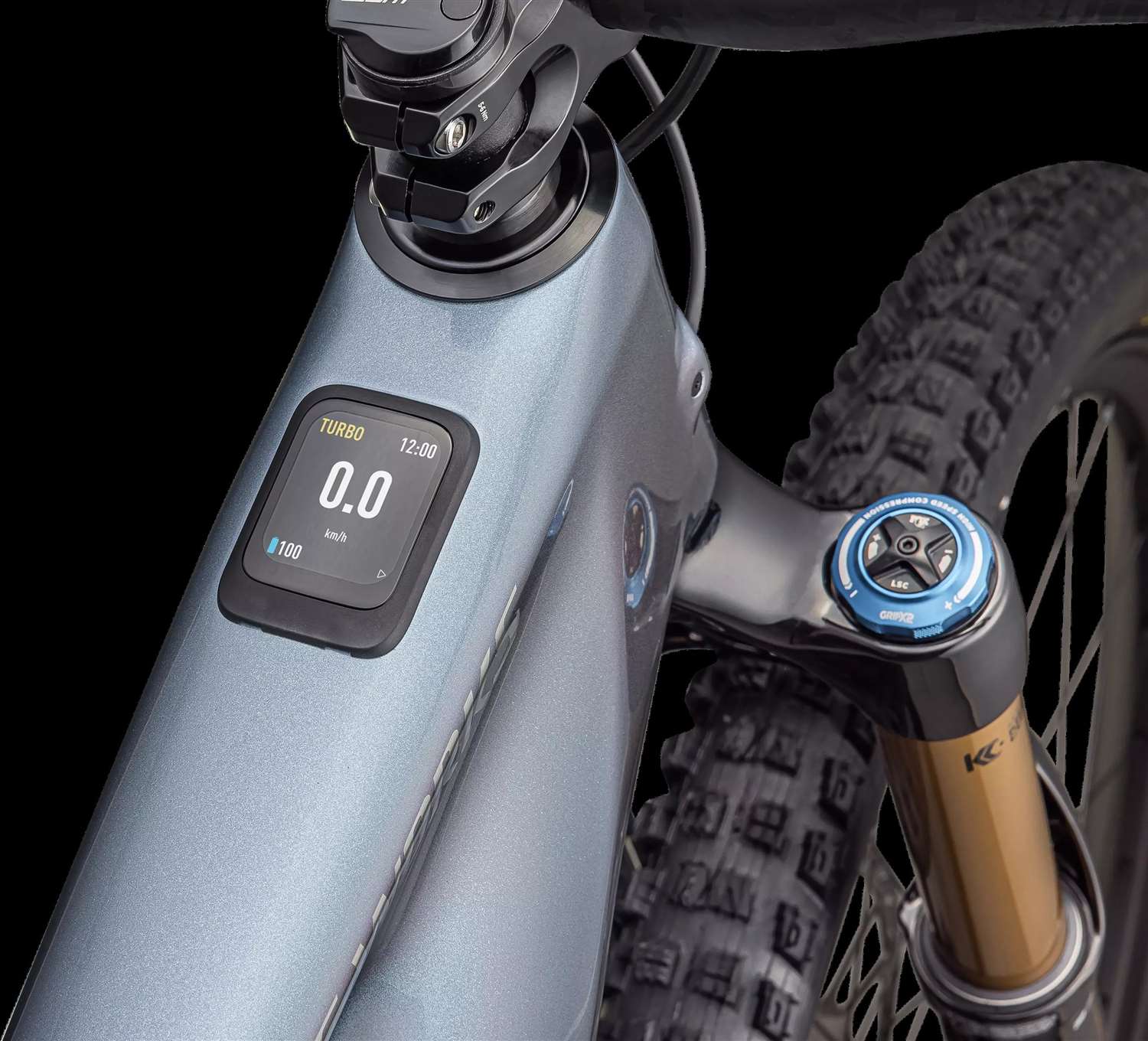

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Caricatore
Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Telaio
Telaio
All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Collarino sella
Alloy, 38.6mm
Forcella
FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Sospensioni
Ammortizzatore posteriore

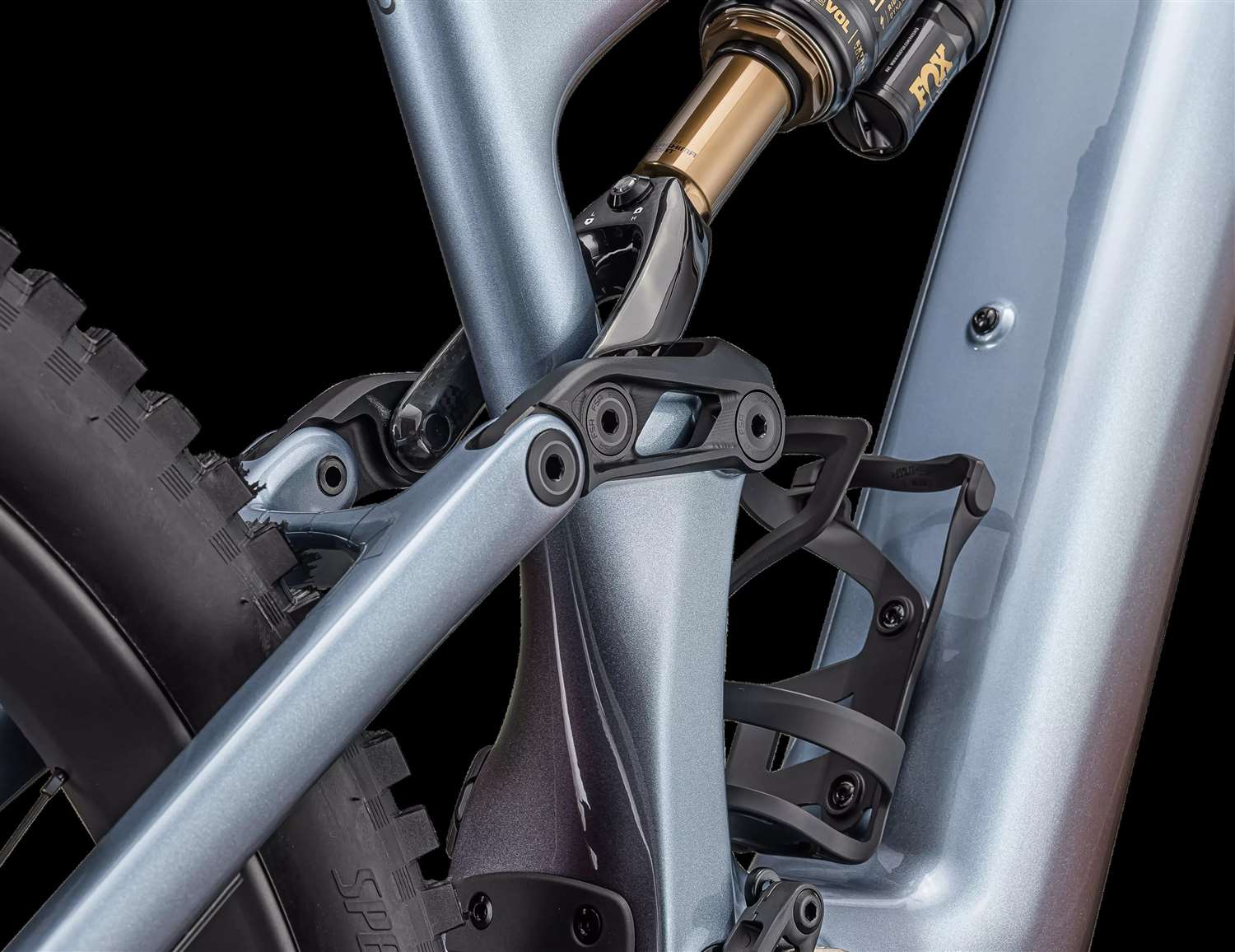

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Freni
Freno anteriore
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Freno posteriore
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Trasmissione
Comandi
SRAM AXS POD Ultimate Controller with Discrete clamp
Cambio posteriore
SRAM XX Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Pacco pignoni
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Catena
SRAM XX EagleTransmission Flattop Chain
Guarnitura
SRAM XX Carbon crank, ISIS interface, 55mm Chainline, 160mm
Ingranaggi
SRAM 34t T-Type chainring, 104 BCD, steel
Ruote
Pneumatico anteriore
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Ruota anteriore
Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h
Pneumatico posteriore
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Ruota posteriore
Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h
Camere d'aria
Standard, Presta Valve
Cockpit
Attacco manubrio
Industry 9 Mountain stem, 35mm clamp, 40mm length
Manubrio

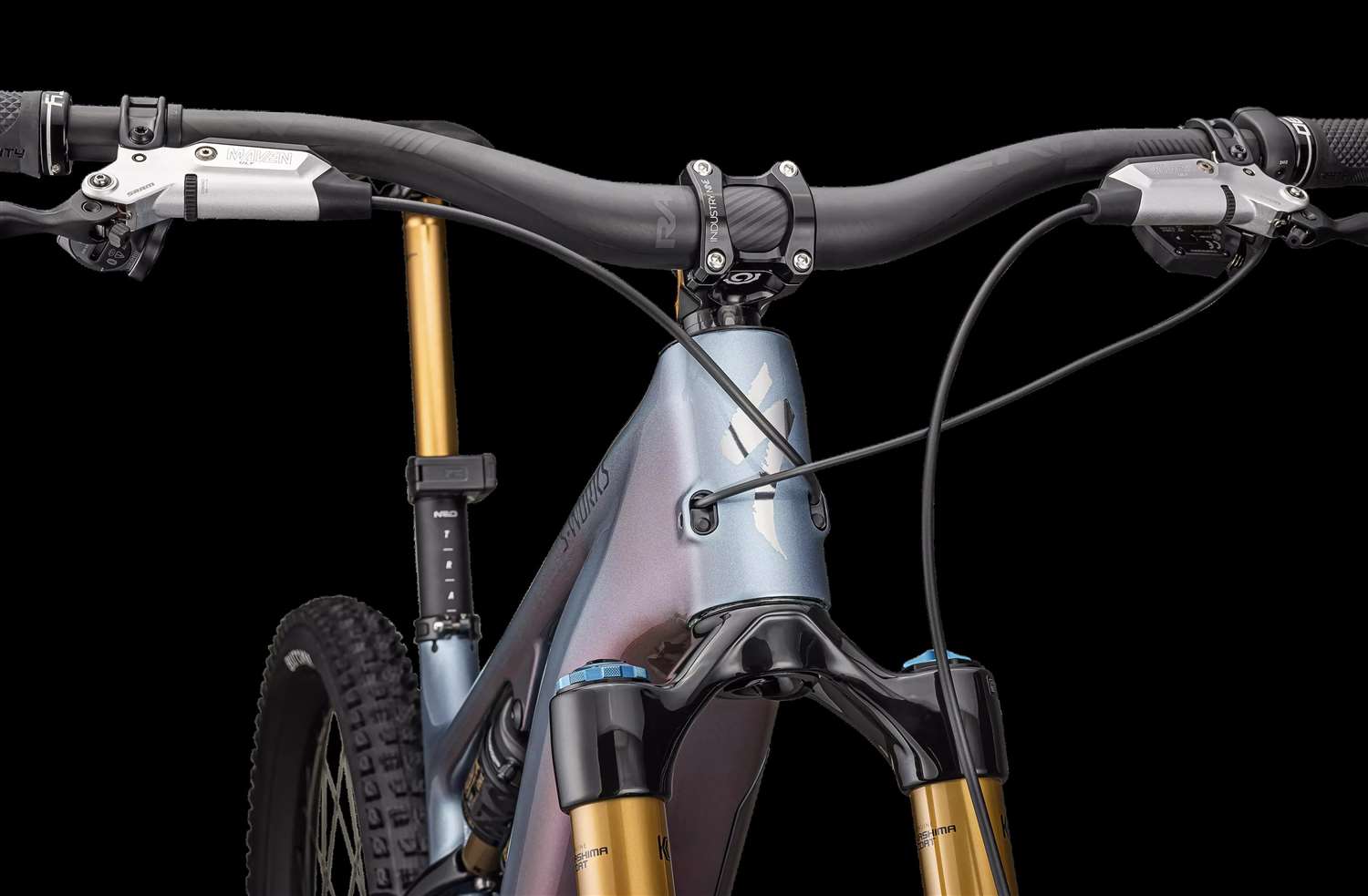

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
Manopole
Deity Lockjaw grips
Sella
Specialized Power Pro Mirror w/hollow Ti rails
Reggisella
FOX Transfer NEO Factory, 34.9, S2: 125mm, S3: 175mm, S4-S6: 200mm
Accessori
SWAT
SWAT internal downtube storage
Peso
Peso
23.68 kg (52 lb, 3.3 oz)
Misura pesata
S4
Lunghezza pedivella | 160 | 160 | 160 | 160 | 160 |
---|
Larghezza Manubrio | 800 | 800 | 800 | 800 | 800 |
---|
Lunghezza Attacco man. | 40 | 40 | 40 | 40 | 40 |
---|
Larghezza Sella | 155 | 143 | 143 | 143 | 143 |
---|
Lunghezza Reggisella | 125 | 175 | 200 | 200 | 200 |
---|
Stack | 618 | 626 | 638 | 652 | 667 |
---|
Reach | 435 | 455 | 480 | 505 | 535 |
---|
Headtube Length | 95 | 103 | 117 | 132 | 149 |
---|
Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
---|
BB Height | 350 | 350 | 350 | 350 | 350 |
---|
BB Drop | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
---|
Trail | 132 | 132 | 132 | 132 | 132 |
---|
Fork Length (full) | 577 | 577 | 577 | 577 | 577 |
---|
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
---|
Front Center | 765 | 789 | 820 | 851 | 888 |
---|
Chainstay Length | 435 | 435 | 435 | 435 | 435 |
---|
Wheelbase | 1200 | 1223 | 1254 | 1286 | 1323 |
---|
Top-tube Length (horizontal) | 578 | 599 | 627 | 655 | 689 |
---|
Bike Standover Height | 753 | 754 | 753 | 758 | 761 |
---|
Seat Tube Length | 390 | 405 | 425 | 445 | 465 |
---|
Seat Tube Angle | 77 | 77 | 77 | 77 | 77 |
---|
Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
---|
Max Seatpost Insertion | 274 | 289 | 313 | 337 | 357 |
---|
Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
---|
